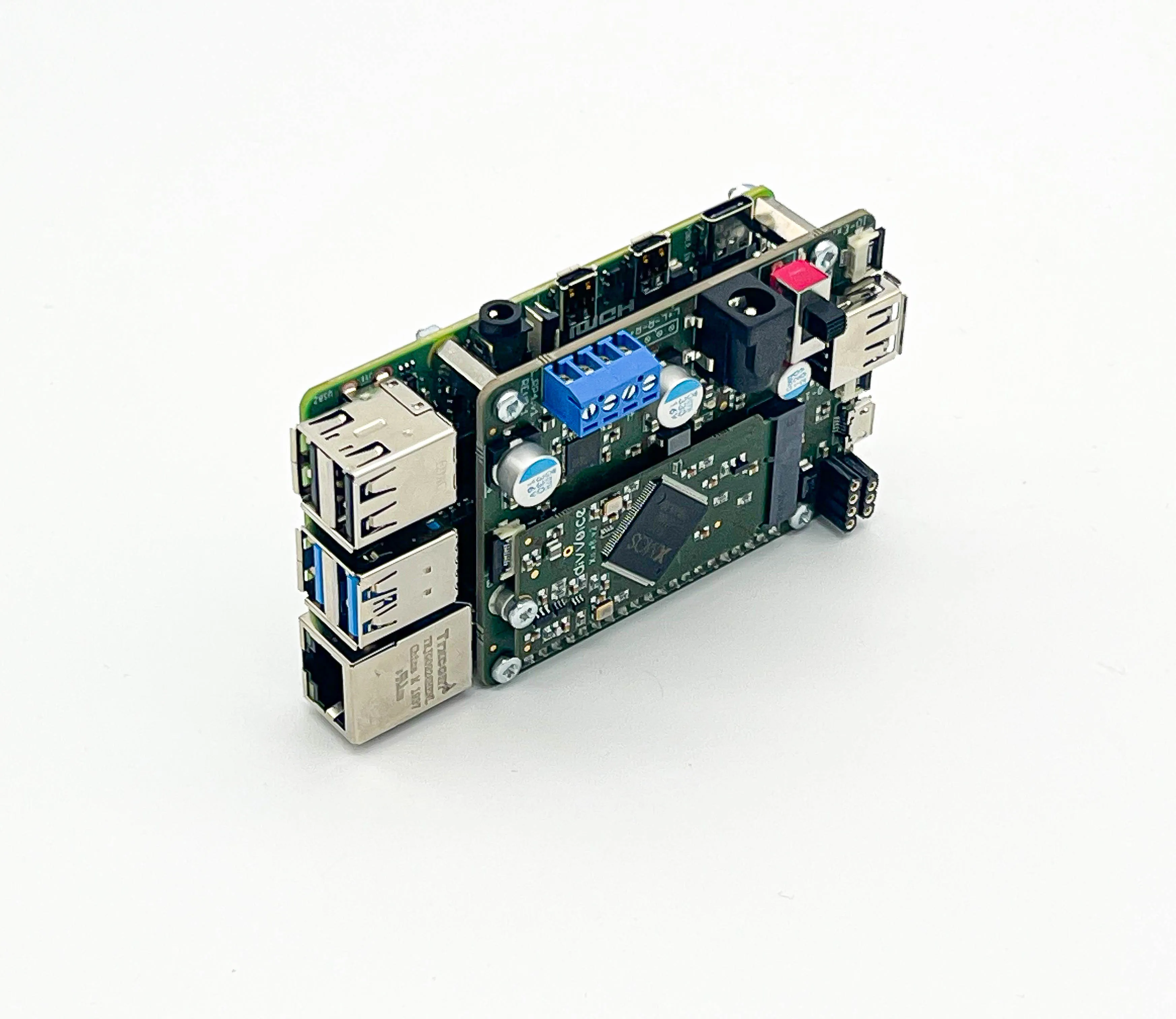

Embidio Nano Raspberry Pi Kit
Transform Your Pi into a High-Fidelity Acoustic Sensing Platform
The Embidio Nano Raspberry Pi Kit turns your Raspberry Pi into a powerhouse for acoustic sensing and voice control, featuring integrated signal processing and connections for microphones, speakers, complementary sensors and LEDs.
Key Features
Multi-Mic Support
Flexible positioning of up to eight microphones enables excellent speech intelligibility and directional audio capture.
Specifications
Audio & Acoustics
- Microphone Input
- Connectors for up to 8 MEMS
- Speaker Output
- Amplified Stereo Output (e.g., 2 x 4W)
- Input Channels
- Up to 8
- Output Channels
- 2 (Stereo)
- Sampling Rates
- 16 / 48 kHz
- DSP Features
- Beamforming, Noise Reduction, Acoustic Echo Cancellation, AGC, EQ
Compute & Connectivity
- Core Module
- Embidio Nano SoM (XMOS)
- Connectivity
- Access to RPi GPIO, I2C, SPI; USB (via RPi)
- LED Control
- Dedicated LED driver/connectors
Physical & Power
- Based on
- Raspberry Pi HAT Standard
- Sensor Ports
- Headers for I2C/GPIO sensors
Use Cases
Voice Assistant Prototyping
Rapidly prototype voice assistant systems on Raspberry Pi
DIY Smart Home Hubs
Build custom smart home hubs with voice control
Educational Projects
Learn voice technology through hands-on educational projects
Custom Voice Interfaces
Create custom voice control interfaces for various applications
Acoustic Monitoring
Develop acoustic monitoring and analysis systems
Robotics Voice Interaction
Enable voice interaction for robotics projects

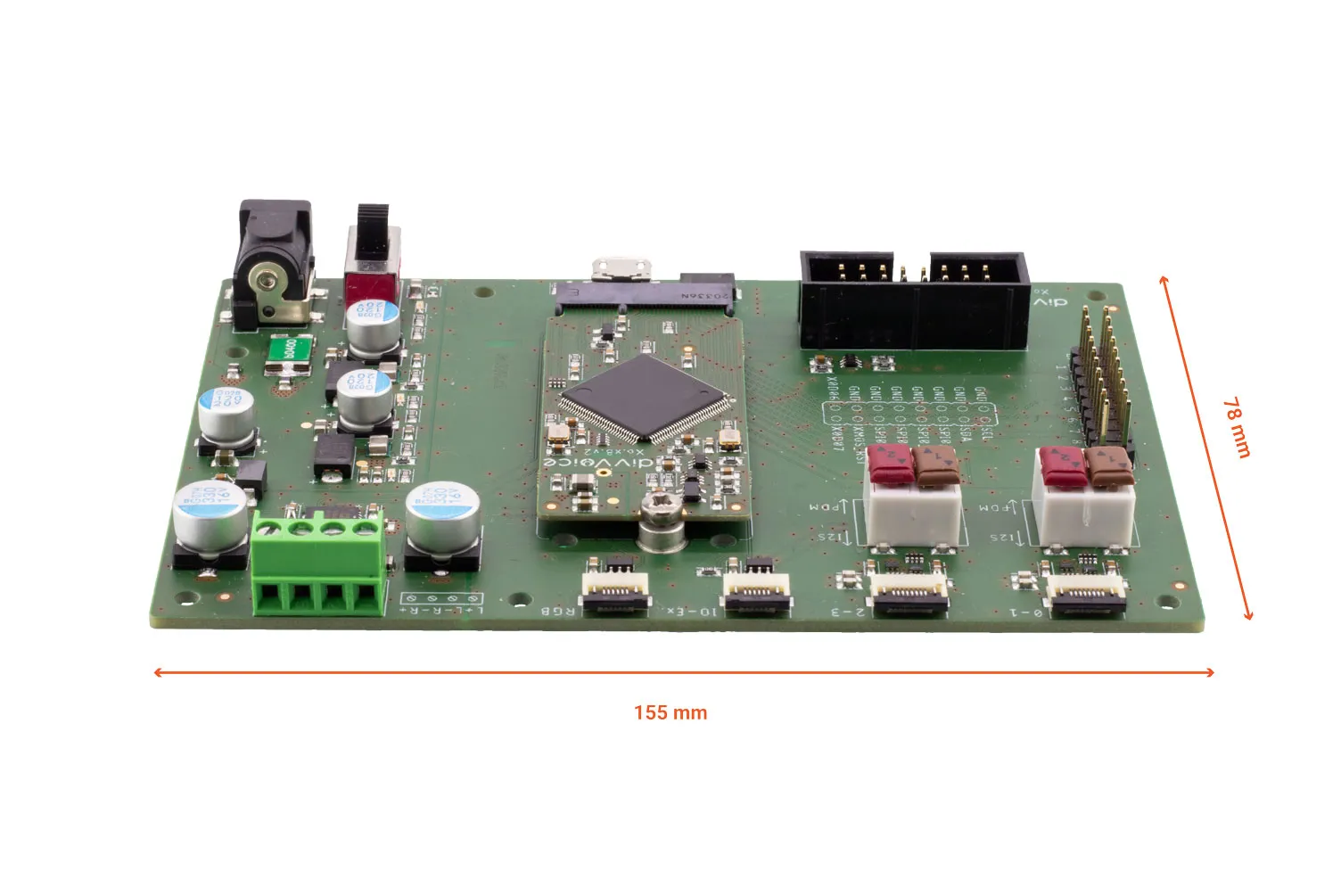

Related Products
