Embidio Nano Development Kit

Accelerate Your Voice Application Development

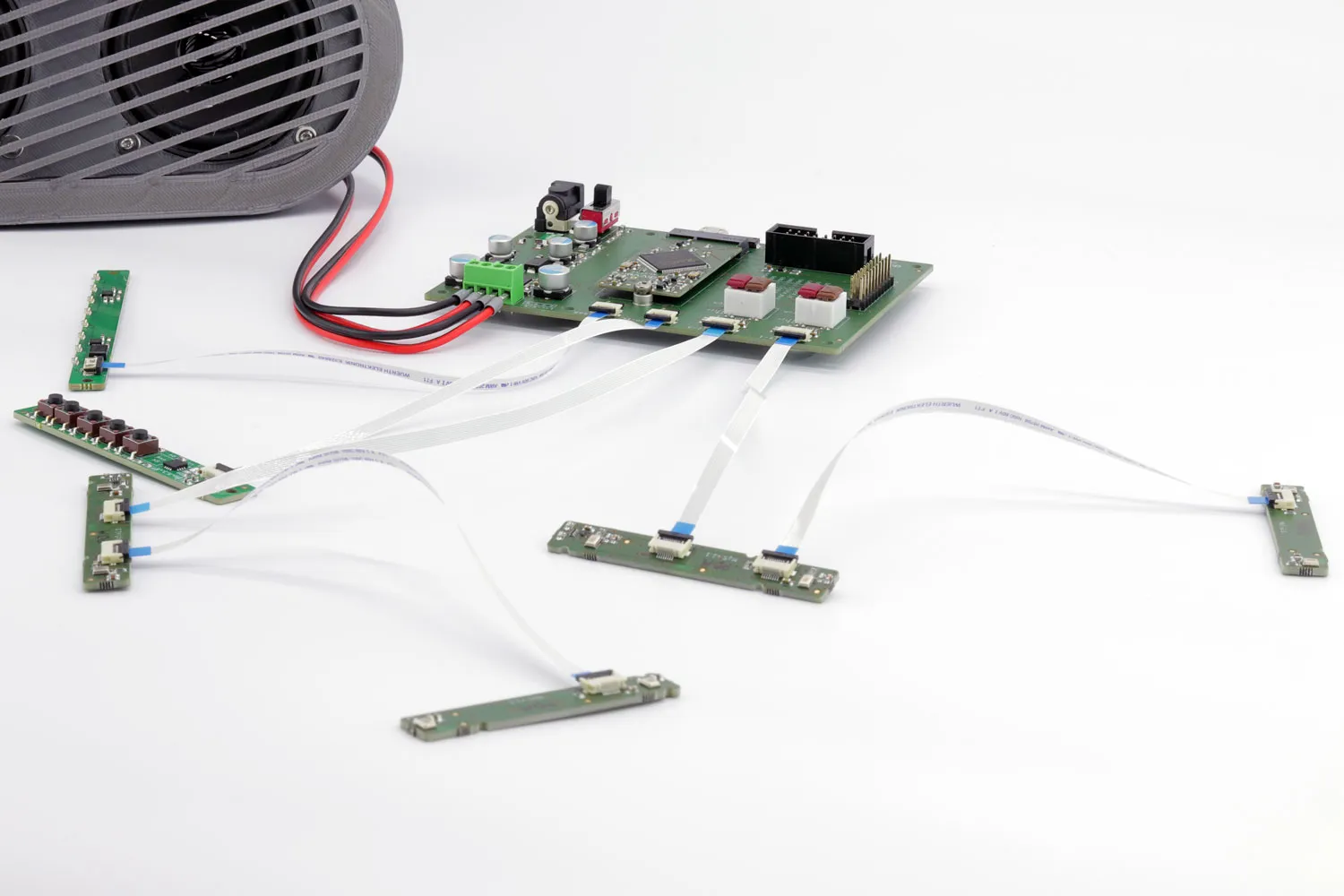

embidio nano development board

Feature Highlights

  • Socket/connectors for Embidio Nano SoM.

  • Onboard 8-microphone array (MEMS).

  • Stereo speaker outputs (amplified, 2x 4W).

  • USB port for power, data, and audio interface.

  • Access to Nano interfaces (SPI, I2C, GPIOs) via headers.

  • User buttons and LEDs for interaction/status.

  • Power supply circuitry.

  • Enables comprehensive testing and software development for Nano.

8-Mic Array

Onboard microphone array captures high-clarity audio for superior voice recognition testing.

Full-Featured Board

Provides easy access to Nano SoM interfaces (USB, I2C, SPI, Audio I/O) for comprehensive testing.

Rapid Development

Streamlines testing, debugging, and software optimization for the Embidio Nano SoM.

Reference Design

Serves as a hardware reference design for integrating the Embidio Nano into custom products.

Development Use Cases

  • Embidio Nano SoM Evaluation

  • Voice Algorithm Development & Testing

  • Firmware Development for Nano

  • Proof-of-Concept Voice Applications

  • Hardware Integration Testing

  • Performance Benchmarking

  • Customer Demonstrations

Technical Specifications

Highlights

  • Core
    Hosts Embidio Nano SoM
  • Microphone Array
    Onboard 8 digital MEMS
  • Speaker Output
    2 x 4 W Stereo
  • Audio Interface
    USB Audio Class 1.0 / 2.0
  • Connectivity
    USB (Data/Power/Audio), Headers for SPI, I2C, GPIOs
  • OS Compatibility (via USB)
    Linux, Windows, MacOS
  • Firmware Update (for Nano)
    Via USB or SPI access
  • User Interface
    Buttons, LEDs

Audio Processing (via Nano SoM)

  • Leverages the full DSP capabilities of the hosted Embidio Nano SoM (See Nano page for details).

Signal Processing Details

  • Leverages the full DSP capabilities of the hosted Embidio Nano SoM (See Nano page for details).
